Will Renault DOKKER Van fit in your garage?
Discover its dimensions in detailLength, height, width, etc.

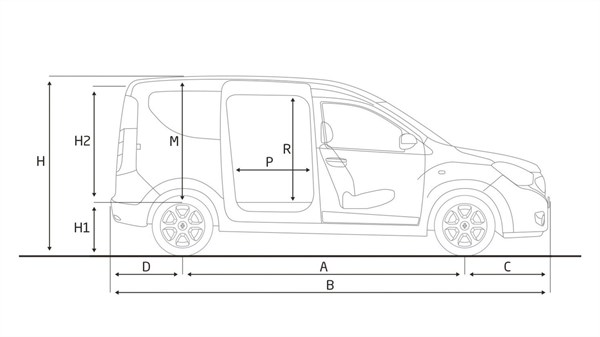

| A | Wheelbase | 2,810 |
| B | Overall length | 4,363 |
| C | Front overhang | 822 |
| D | Rear overhang | 731 |
| E | Front track | 1,490 |
| F | Rear track | 1,478 |
| G | Unladen / laden ground clearance | 186 / 151 |
| H | Unladen height without/with roof bars | 1,809 / 1,847 |
| H1 | Sill height (unladen) | 565 |
| H2 | Rear opening height | 1,100 |
| L | Overall width with rearview mirrors | 2,004 |
| L1 | Interior width between wheel arches (with/without panels) | 1,130 / 1,170 |
| L2 | Maximum loading width (without panels) | 1,372 / 1,413 |
| M | Maximum loading height | 1,271 |
| N1 | Lower boot entrance width (at sill level) | 1,189 |
| N2 | Rear opening width (1 m from the floor) | 1,082 |
| P | Opening width at sliding side door level | 703 |
| R | Opening height at sliding side door level | 1,046 |
| Y1 | Maximum loading length on floor with tubes/partition | 1,856 / 1,901 |
| Y2 | Maximum loading length on floor with Easy Seat removed | 3,110 |
| 2 seat layout | 3,330dm3 |
| 1 seat layout (with one seat removed) | 3,900dm3 |
| Weight | 750kg |
